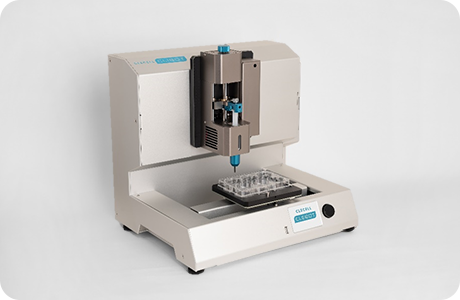

3D Bioprinter CLIBOT
Uniform and precise output function Custom 3D bio printer for researchers or bio-specialists who need simple repetitive work
Product Specification
| Number of Nozzles | 1 |
|---|---|
| 3D Modeling / Editing Type | 3D / 2.5D |
| Build volume | 130 mm x 86 mm x 30 mm |
| Supported file formats | .gcode, .stl, .obj, .amf |
| Desktop application compatibility | Windows 10/11 |
| Power supply | Input: 100-240VAC, 50/60Hz, Output: V12DC, 37.5A, 450W |
| Build surface compatibility | Petri dishes and multi-well plates (6 to 384 wells) |
| Software | U-Studio + G-code Editor |
| Operating temperature range | 15 - 30 °C |
| Outer dimensions (D x W x H) | 350 mm x 320 mm x 350 mm |
| Weight | 16.2 kg |
| Printable Material | --- |
CLIBOT Special Feature
-

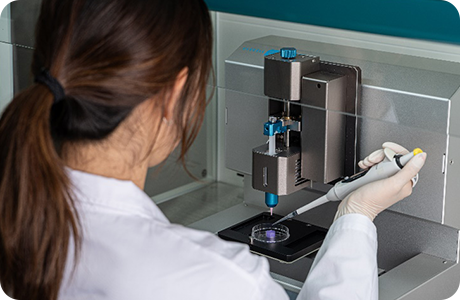

Portability and biological stability
⦁ Installed in BSC Cabinet and Clean Bench
⦁ Easy to move and change work location
⦁ Maintain stable experimental environment
-

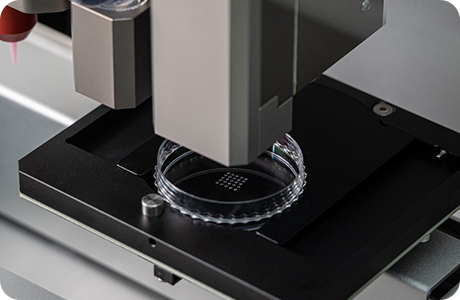

Precise Printing
⦁ Uniform Cell Printing and dispensing function
⦁ Petridish, 6well, 12well, 24well 48well, 96well, 384well ETC, Ensuring reliable Printing results in the desired well
-
User Friendly Function
⦁ Auto Calibration: Nozzle position and output Build-plate leveling function
⦁ Built-in editor provided so even beginners can easily implement 3D shapes
⦁ Clecell’ U-Studio Software
⦁ Available for use with general 3D modeling files (STL, etc.) and G-Code Editor for experts
CLIBOT Printhead
Syringe pump Extruder
-
⦁ For syringe pump extruder, precise extrusion of biomaterials in 0.1 µL units is possible.
⦁ Ensuring accurate printing of tissues and cells and consistency of results
-
⦁ Applicable to various temperature conditions (Extruder : 10°C - 65°C / Droplet dispenser : 15°C - 50°C)
⦁ Improved cell viability and structural stability through temperature control
-
⦁ Stable printing of various materials from low to high viscosity is possible with the Syringe Pump Extruder method
⦁ Printing possible according to the characteristics of various biomaterials
-
⦁ 3mL과 5mL Syringe compatible available
⦁ Ensuring flexibility and efficiency of experiments
CLIBOT Special Feature
|
CLIBOT |
A |
|
| Printhead volume |
Syringe pump Extruder : 3 mL / 5mL 3mL, 5mL Syringe compatible available |
Extruder : 2.5 mL |
| Printhead temperature range |
Syringe pump Extruder Up to 65-degree |
Extruder Heating Unavailable |
| Software |
2.5 Modeling, 3D Modeling Possible G-Code Edit |
3D Modeling Available |
